1 5/8 Inch Tubing Cut List for 10 ft. 4 3/4 in. X 12 ft. Canopy
using a 12X20 ft. Tarp

High Gable Peak Canopy (120 Degree slope, 7 inch rise/foot)

Tubing Requirements: (Tubing not included)

Purchase 1 5/8 inch of Chain tubing from local hardware or home improvement store. Cut into the following pieces:
Chain link fence tubing can be purchased in lengths up to 20 feet or can be purchased precut into the following sizes:

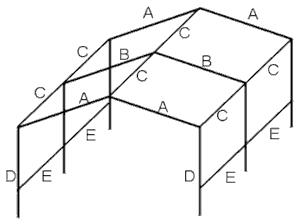

LabelNameNumber of PiecesLength of Pieces
AEnd Roof Rafters46 ft. 10 1/2 in.
BMiddle Roof Rafters26 ft. 10 1/2 in.
CRoof Ridge and Sides**69 ft. 10 in.
DLegs*67 ft.
ESide rail for tarp over side49 ft. 10 in.
* Legs can be cut to any desired length. Structures with side height greater than 8 feet should only be constructed with 1 3/8, 1 5/8 or 1 7/8 inch tubing materials
**These are the recommended rafter sizes. By making them longer or shorter you will change the amount of tarp over the side and change the opening width.

Approximate final dimensions:

These are approximate final dimensions. They may vary slightly with variations in cut lengths, tarp variations and assembly
Tarp Size20X12
Peak Height10 ft. 6 3/4 in.
Side Height7 ft.
Front Opening Width12 ft.
Length20 ft.
All canopy shelters should be considered temporary structures and are not designed to withstand acts of nature such as heavy wind and snow. Anchoring of canopies is strongly recommended. Failure to anchor is unsafe and can lead to property damage. Click Here to see what can happen when canopies are not securely anchored.
Tarp Order Information
ImageNameSizeGrommetsShip Wt.PriceQuantity
Part #: T1220S
12 46 9.60 Lbs. $72.60
Failed to add Item
1 item added to cart
You have of this item in cart
Adding...
Fitting Order Information
ImageNameTubing SizeShip Wt.PriceQuantity
Part #: FOT-D
1 5/8 inch 3.00 Lbs $25.70
Failed to add Item
1 item added to cart
You have of this item in cart
Adding...
Part #: HP3-D
1 5/8 inch 4.00 Lbs $28.30
Failed to add Item
1 item added to cart
You have of this item in cart
Adding...
Shipping the curved style.
Part #: HP4-D
1 5/8 inch 4.00 Lbs $36.85
Failed to add Item
1 item added to cart
You have of this item in cart
Adding...
Currently shipping curved style only
