1 5/8 Inch Tubing Cut List for 8 ft. 8 in. X 10 ft. Canopy
using a 10X10 ft. Tarp
using a 10X10 ft. Tarp
Tubing Requirements: (Tubing not included)
Purchase 1 5/8 inch of Chain tubing from local hardware or home improvement store.
Cut into the following pieces:
Chain link fence tubing can be purchased in lengths up to 20 feet or can be purchased precut into the following sizes:

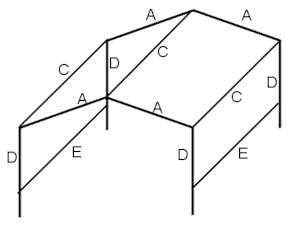

| Label | Name | Number of Pieces | Length of Pieces |
|---|---|---|---|
| A | End Roof Rafters | 4 | 5 ft. 8 3/4 in. |
| B | Middle Roof Rafters | N/A | Not Required |
| C | Roof Ridge and Sides**| 3 | 9 ft. 10 in. | |
| D | Legs* | 4 | 7 ft. |
| E | Side rail for tarp over side | 2 | 9 ft. 10 in. |
*
Legs can be cut to any desired length.
Structures with side height greater than 8 feet should only
be constructed with 1 3/8, 1 5/8 or 1 7/8 inch tubing materials
**These are the recommended rafter sizes. By making them longer or shorter you will change the amount of tarp over the side and change the opening width.
Approximate final dimensions:
These are approximate final dimensions. They may vary slightly with variations in cut lengths, tarp variations and assembly
| Tarp Size | 10X10 |
| Peak Height | 9 ft. 11 3/4 in. |
| Side Height | 7 ft. |
| Front Opening Width | 10 ft. |
| Length | 10 ft. |
All canopy shelters should be considered temporary structures
and are not designed to withstand acts of nature such as heavy
wind and snow. Anchoring of canopies is strongly recommended.
Failure to anchor is unsafe and can lead to property damage.
Click Here to see
what can happen when canopies are not securely anchored.
